MYJET 60CM UV DTF
Description

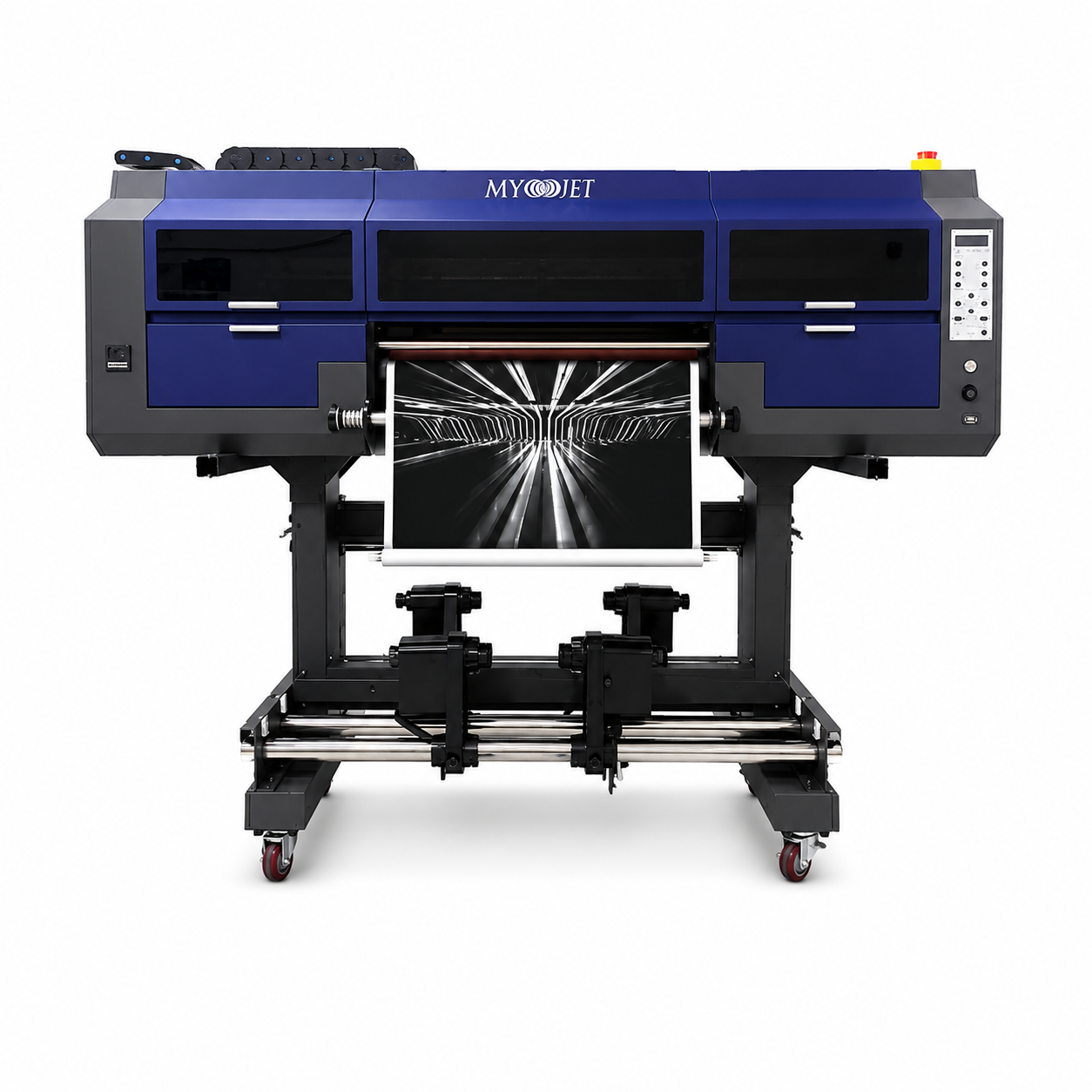

MYJET 60CM UV-DTF Printer
If you’re looking to add crystal label and UV DTF sticker production to your shop without investing in a full flatbed setup, the MYJET 60CM UV-DTF Printer delivers a dedicated, all-in-one solution built around AB transfer film. It prints, then transfers directly onto almost any surface — no cutter, no heat press, and no color limitations to work around.
What the MYJET 60CM UV-DTF Printer Does
This machine uses UV-curable ink printed onto a two-part (AB) transfer film to create crystal labels and UV DTF stickers with a genuine 3D relief effect. Once cured, the design transfers cleanly onto cylindrical, curved, smooth, or hard surfaces — think tumblers, phone cases, appliance panels, glassware, and metal signage — without pre- or post-processing equipment.
Built for Scratch Resistance and Durability
Because the UV ink cures instantly under the water-cooled lamp system, finished transfers resist scratching and stay washable long after application. That durability is what makes UV DTF stickers a popular choice for product branding and promotional items that need to survive daily handling.
Technical Specifications
| Technical Parameter | Details |
|---|---|
| Printhead Model | Epson I3200 |
| Printing Width | 550mm |
| Printing Speed | 12–13 m²/h |
| Software | RIPrint / PhotoPrint / MainTop |
| Computer Requirements | Win7+ 64-bit, i5 CPU or above, 8GB RAM, 120GB SSD + 1TB storage, gigabit LAN |
| Power | Fan 750W / Drum 700W / Equipment 700W |
| Packing Size | 1930 × 870 × 800mm |
| Net / Gross Weight | 220kg / 245kg |
| Operating Environment | Temp 20–28°C, Humidity 38–65% |
| Printing Materials | Crystal label AB transfer film |
| UV System | Water-cooling system |
| Applications | Packaging, appliances, machinery, plastics, glass, ceramics, metal |
Engineering Highlights

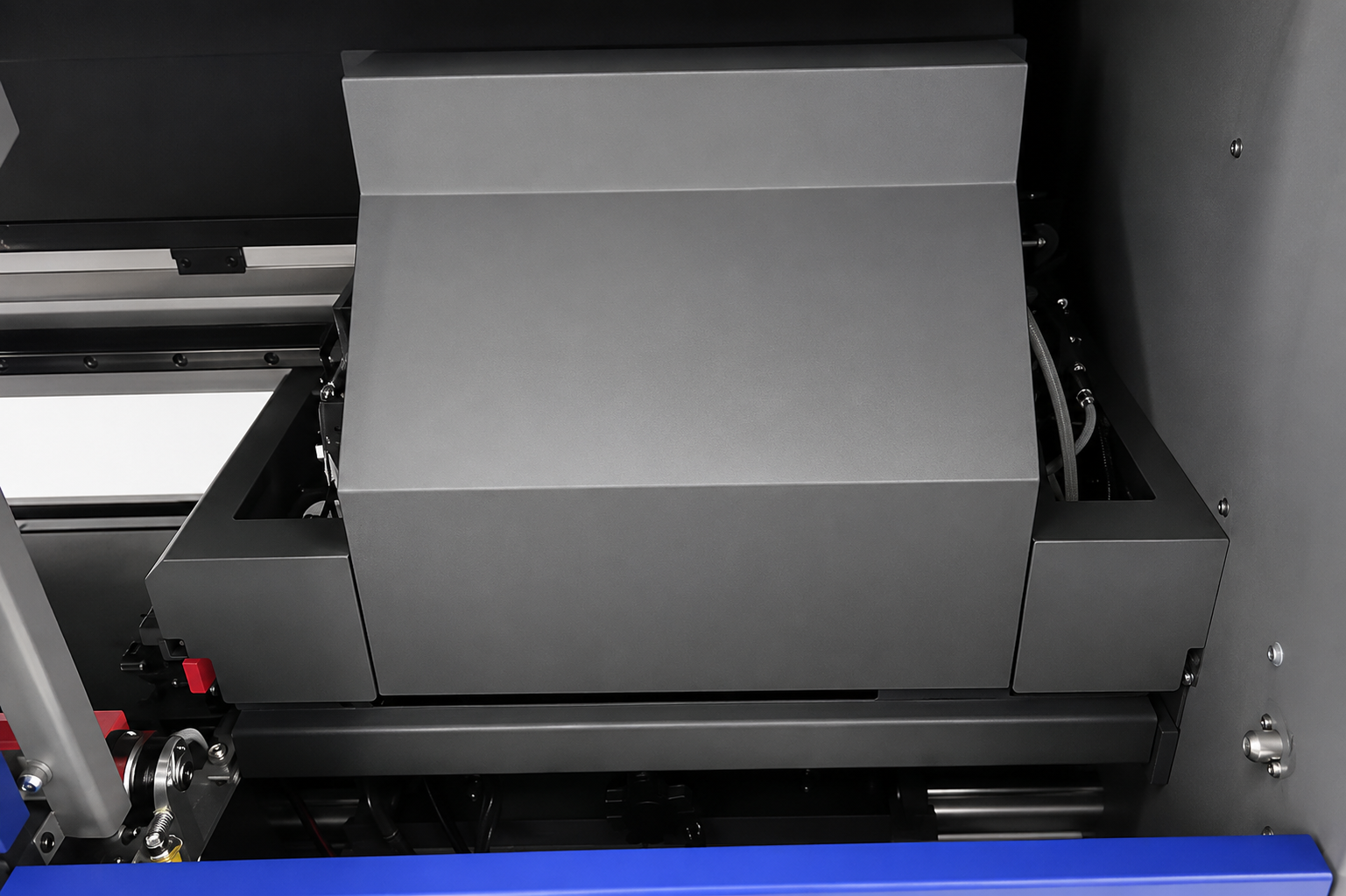

- Noise-off guide rail — aviation aluminum upper beam with Taiwan Hiwin silent double-slider rails for a smoother carriage and cleaner print detail
- Four-lamp UV control system — adjustable water-cooled UV energy across four lamps, with a four-row sprinkler base plate for flexible printing modes
- Stepping rubber-covered roller — large-diameter roller with auto constant-temperature coating for consistent Y-direction accuracy
- Dual-power feed and collection — high-capacity, uniform discharge from double-power paper feeding
- Six-color ink circuit — includes ink-shortage alarms and automatic white ink mixing to prevent pigment settling
- Aluminum ink stack — screw-driven, linear-bearing sliding stack that keeps multi-row nozzle suction stable and extends service life
MYJET 60CM UV-DTF vs. MYJET 30CM UV-DTF
The 60CM model steps up from the 30CM UV DTF printer with a wider 550mm print width, making it better suited to production runs and larger label formats, while the 30CM stays a compact, desktop-friendly option for startups and lower-volume custom work. Both share the same AB film process and no-heat-press workflow, so the choice comes down to throughput and workspace footprint.
Frequently Asked Questions
What surfaces can the MYJET 60CM UV-DTF Printer transfer onto?
It’s designed for smooth and hard surfaces, including glass, ceramics, metal, plastic, and curved or cylindrical items like tumblers and bottles.
Do I need a heat press or cutter with this printer?
No. The AB film transfer process eliminates both — you print, then apply the transfer directly.
What print heads does this machine use?
It runs on an Epson I3200 printhead for consistent resolution and reliable ink lay-down at 12–13 m²/h.
How is white ink handled during longer runs?
The six-color ink circuit includes an automatic white ink mixing system that prevents pigment precipitation, plus an ink-shortage alarm.
What software is compatible with the MYJET 60CM UV-DTF?
It works with RIPrint, PhotoPrint, and MainTop RIP software on a Win7-or-later 64-bit system.
Ready to Add UV DTF Production to Your Lineup?
Contact Eloquent Prints for pricing, lead times, and setup support on the MYJET 60CM UV-DTF Printer.
